The TSX CSY 84 / 164 modules can be installed in all the racks located on the main X bus segment of a PLC station.

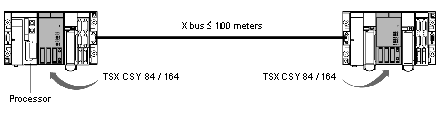

The diagram below represents the installation of a TSX CSY module in a rack belonging to the main X bus segment. The module can be installed in the rack supporting the processor and in all other racks present on the X bus. The distance between the rack supporting the TSX CSY module and the rack supporting the processor must not exceed 100 meters.
NOTE: The TSX CSY 84 / 164 modules cannot be installed in a rack belonging to a remote X bus segment by a TSX REY 200 module.
