Mounting modules in a PLC station rack
(Original Document)
About us
Introduction
The TSX CSY 84/164 modules can be mounted in all available slots on a TSX RKY •• rack for a TSX 57/PCX 57/PCIX 57 PLC, with the exception of slots reserved for power supply modules and the processor. This double-format module occupies 2 slots on a TSX RKY •• rack.
Illustration

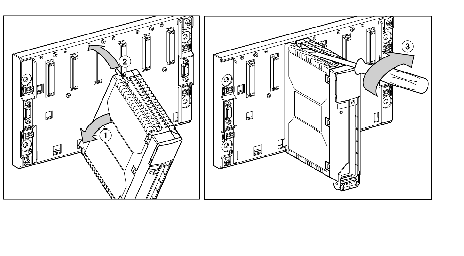

The diagrams below introduce the mounting procedure for a standard-format Premium range module on the TSX RKY •• rack. The procedure is the same for a double-format module.
Procedure
The following table describes the operations to be carried out.
Steps
Actions
1
Position the pins on the reverse side of the module in the centering holes located on the bottom part of the rack.
2
Rotate the module so that it comes into contact with the rack.
3
Connect the module to the rack using the screw located on the upper part of the module. Maximum tightening torque: 2.0 N. m.
