Status Bits and Words
(Original Document)
About us
Introduction
Status bits (
%I
) give the status of the axis control module (controller) and of the variable speed controller.

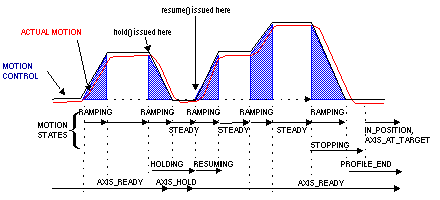

The following figure shows a movement profile with various movement conditions indicated.
