Description of the debugging zone: "Parts counter"

Accessing the screen

The "Parts counter" function is selected in the browser.

At a Glance

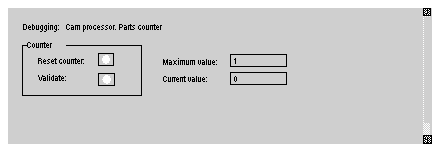

"Parts counter" screen zone

The current value of the parts counter is displayed, together with the maximum value given in the .

An enabling button: Reset counter enables the counter to be reset to 0 on the rising edge. An enabling button: Confirm is used to confirm the conditions for parts counting. This button confirms conditions permanently when it is pressed (black).

Recipe

The recipe groups together the data required for the module to control the machine for a series of parts. The recipe can be modified or completely changed by the PLC application. All this information is contained in the PLC %MW words in the memory zone reserved for the module.
