Connector configuration

Role

The logic state of the is assigned to the physical outputs of the module.

The configuration of the connectors enables the inverse state to be electrically applied to an output:

Procedure

The following table describes the operations to be performed:

Step	Action
1	Click with the right mouse button on Connector 0 or 1 in the browser and select Unlock. Result: the cross above the connector icon disappears.

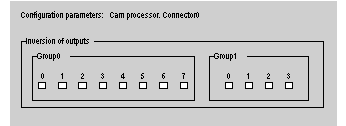

2	Double click on Connector 0 or 1 in the browser. Result:
3	Check the boxes of the outputs to be inverted
