Reloading a modified recipe in the module

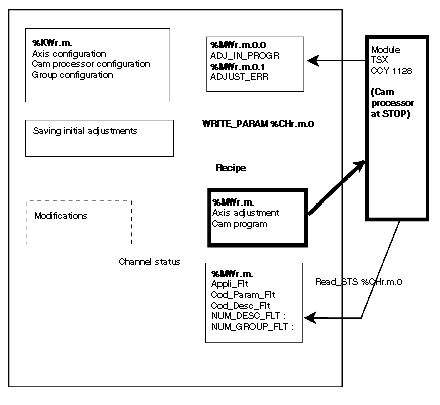

The WRITE_PARAM instruction is used to load the parameters of a modified
All the recipe adjustment data are transmitted to the module using the WRITE_PARAM function. The is set to STOP.
If the exchange is faulty the module remains at STOP.
During the transfer, the bit %MWr.m.0.0.2 Adj_In_ Prog is set to 1.
At the end of the exchange, the Adjust_err bit (bit %MWr.m.0.1.2) is set to 1 if the exchange has not been successful. The READ_STS function is used to update the channel status.
It contains the following data:
-
Appli_Flt : the module refused the new recipe. The cam function cannot be activated. However, the old parameters contained in the module can be saved using the READ_PARAM function.
-
Cod_Param_Flt : error code found by the module in a or adjustment data item in the . part.
-
Cod_Desc_Flt: error code found by the module in a configuration or adjustment data item in the or cam descriptor part.
-
Num_Desc_Flt : codes the track or cam number containing a description error.
-
Num_Group_Flt : codes the group number which contains the track or cam containing a description error.
