READ_PARAM : Transfer of current recipe parameters

(Original Document)

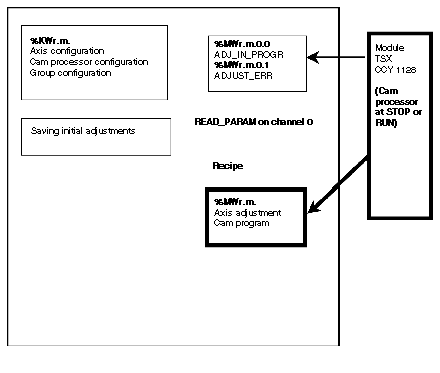

Returning current recipe parameters

The READ_PARAM instruction is used to return the parameters of the current recipe contained in this module..

During the transfer, the ADJ_IN_PROGR bit is set to 1. The READ_PARAM instruction does not force the to STOP.

Cam processor

This is the part of the module that directly controls the outputs according to the angle reading and according to the cam program supplied with the module.
