Parametering for the parts counter

Role

The parts counter is used to:

indicate the number of parts processed,
confirm the action of a cam when a certain number of parts (limit value) has been completed.

This operation is used to set the limit value of the parts counter.

The parts counter is incremented, decremented or reset to 0 when changing to 1 on a according to the .

Procedure

The following table describes the operations to be performed:

Step	Action

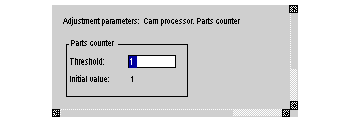

1	In the browser, double-click on Parts counter. Result
2	Enter the limit value for the parts counter (value from 1 to 32767)

Cam program

This is all the internal data that defines the activation of the outputs according to the position reading of the axis. The cam program represents the most important part of the recipe.
