TSX CAP S15 connection accessory

At a Glance

The TSX CAP S15 accessory comprises 2 15-pin SUB D connectors, and ensures the link between the module’s connection interface and the encoder’s connection string.

The table below introduces the TSX CAP S15 connection accessory.

Diagram	References	Use	Composition
	TSX CAP S15	Can be used in the module/encoder connection string	Kit comprises 2 15-pin SUB D connectors with covers.

Integrating the TSX CAP S15 into the connection string

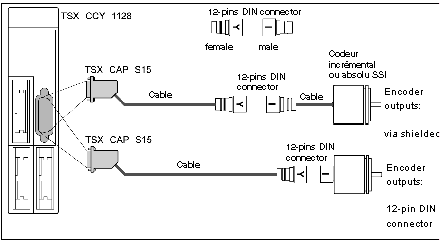

The diagram below shows how to integrate a 15-pin SUB D connector from the TSX CAP S15 kit into the encoder connection string.
