Presentation of the Various Accessories
The following table presents the various accessories, their uses and functions.
|
Representation
|
Product references
|
Use
|
Function
|
|
|
TSX TAP S1505
|
May be used in the module/encoder connection series to connect a 5 VDC-powered incremental encoder with RS 422 outputs and A+/A-, B+/B- & Z+/Z- signals.
|
Mechanical interface, fitted with two connectors which enables conversion from a 15 pin SUB D connection system to a 12 pin DIN connection system.
|
|
|
TSX TAP S1524
|
May be used in the module/encoder connection series to connect a 24 VDC-powered encoder with Totem Pole outputs and A, B & Z signals.
|
Mechanical interface, fitted with two connectors which enables conversion from a 15 pin SUB D connection system to a 12 pin DIN connection system.
|
|
|
TSX CCP S15•
|
May be used in the module/encoder connection series to connect the module to the TSX TAP S1505 or TSX TAP S1524
|
Connector cables made up of a 24 gauge wiring cable and fitted with 15 pin SUB D connector at each end.
|

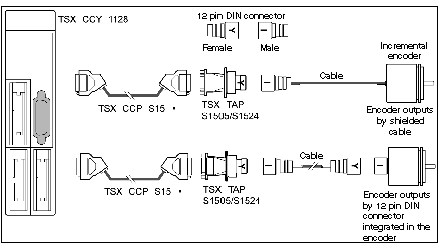

Integration of TSX TAP S1505/S1524 and TSX CCP S15• Accessories in the Connection Series.
The figure below shows the integration of an encoder for the TSX CCP S15, TSX TAP S1505 and TSX TAP S1524 accessories in the connection series.
Mounting of the TSX TAP S1505/S1524 Accessories
The figures below show the two mounting procedures for these accessories.
|
Mounting on an AM1-PA• Telequick mounting grid
|
Cabinet bushing mounting
|
|
|
|

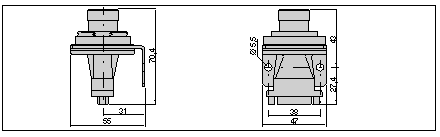

Dimensions of the TSX TAP S1505/S1524 Accessories
The below figure shows the dimensions and the mount center distances on the AM1-PA• Telequick mounting grid for the TSX TAP S1505 and TSX TAP S1524 accessories.
Anti-clockwise Direction of the Connection Series’ 12 Pin DIN Connectors
To facilitate the connections, the numbers of the pins on the connection series’ various 12 pin DIN connectors must match up, one to one . For this, the connector pin assignment must be:
-
in a clockwise direction for connectors that belong to the cable linking the TSX TAP S1505/S1524 accessory to the encoder,
-
in an anti-clockwise direction for connectors that belong to the encoder and the TSX TAP S1505/S1524 accessory.

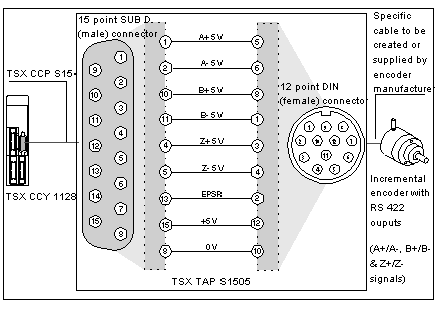

Pin Assignment for the TSX TAP S1505 Accessory
The below figure shows the pin assignment for the TSX TAP S1505 accessory on both the 15 pin SUB D connector and 12 pin DIN connector sides.
Pin Assignment for the TSX TAP S1524 Accessory
The below figure shows the pin assignment for the TSX TAP S1524 accessory on both the 15 pin SUB D connector and 12 pin DIN connector sides.
