The electronic cam function controls the module’s outputs according to the position of the encoder installed on the machine. Several encoder types can be used:
-
incremental encoder with RS 422/ RS 485 line transmitter outputs,
-
incremental encoder with Totem Pole outputs,
-
absolute SSI encoder with series outputs,
-
absolute encoder with parallel outputs. The use of this encoder requires a TELEFAST ABE-7CPA11 interface, which converts parallel output signals into series output signals.

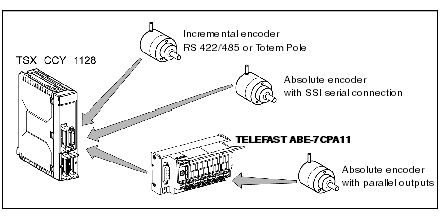

The diagram below represents the various types of encoder, which can be connected to the module.
