Installation methodology

(Original Document)

Illustration

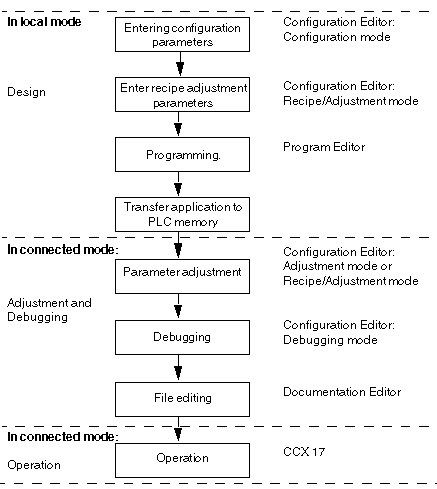

The following flowchart summarizes the various implementation phases for an electronic application.

NOTE: the variables editor offers the Presymbolization function which automatically generates the symbols for the electronic cam module.

Cam

Logic state which switches to 1 when an angular value in the cycle is overshot and which resets to 0 according to the type of cam.

A cam is systematically associated to one and only one track. Several cams can be associated to one track.
