Entering XMOVE Function Parameters

At a Glance

An interpolated movement command is programmed by an XMOVE function using the following syntax:

XMOVE (AXIS_CH3,N_Run,G9x,G,SPACE,X,Y,Z,F,M)

The Details screen will assist you in entering each parameter.

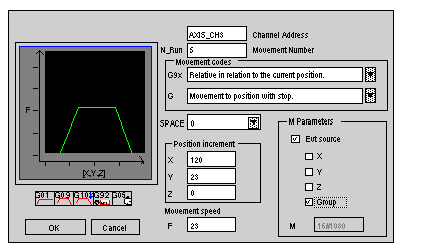

XMOVE Function Details Screen

The XMOVE function details screen is as follows:

Entry fields (for XMOVE function parameters) as are follows:

Parameter	Description
AXIS_CH3	IODDT type variable corresponding to channel 3 on which the function must operate. Example: AXIS_CH3 of type T_INTERPO_STD
N_Run	Movement number
G9x	Movement type
G	Instruction code
SPACE	Plane or Space Number
X, Y and Z	Coordinates for Position to Reach
F	Moving Part Movement Speed
M	Event processing
