Programming Interpolated Movements
(Original Document)
About us
At a Glance
The XMOVE instruction must be used to program an interpolated movement. This instruction is automatically sent to channel 3 of the TSX CAY 33 module.

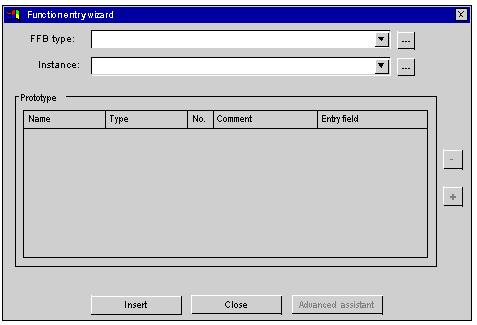

Assisted Entry Screen
You can enter the XMOVE function directly or using the entry help screen:
NOTE: When the XMOVE EF is displayed in red on the functions assisted entry screen, it cannot be used in the application.
  • An earlier version of the EF is already used in the application.
  • The name of the EF is used as a symbol associated with a variable.
Assisted Entry
In the ST editor proceed as follows:
Step
Action
1
Right click in the editor and select FFB entry assistant.... The Function entry help window will be displayed.
2
Type XMOVE.
3
Press the Advanced assistant button and fill in the different fields that are offered. Function variables can also be entered directly into the parameters entry zone.
4
Confirm with OK or Enter. The function will be displayed.
