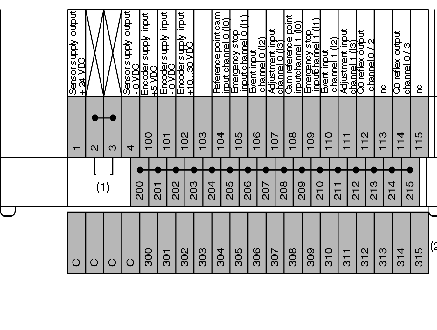

The terminal below represents the terminal of the ABE-7H16R20 base. The signals are represented using TSX CDP 053 / 503 cable:
(1) At the ABE-7H16R20 base, the position of the jumper wire determines the polarity of all terminals from 200 to 215:
-
jumper wire in position 1 or 2: terminals 200 to 215 have + polarity,
-
jumper wire in position 3 or 4: terminals 200 to 215 have - polarity,
(2) At the ABE-7H16R20 base, it is possible to add an optional ABE-7BV20 strip to create a second shared sensor (+ or - according to user’s choice).
