TELEFAST Connection and Wiring Accessories
(Original Document)
About us
General
When connecting this high density connector, it is recommended that you use the discrete TELEFAST ABE-7H16R20 pre-wiring accessory and the TSX CDP 053/503 cable or a 3m long strip of the 20-wire TSX CDP 301 or a 5m strip of the TSX CDP 501, which contains a HE10 connector at one end and free wires at the other.
Illustration

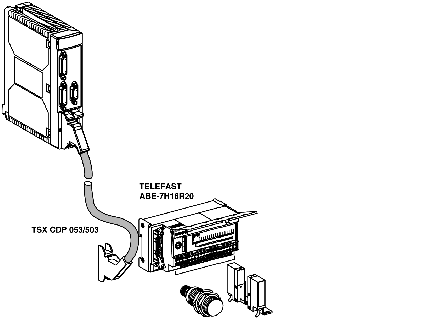

Discrete TELEFAST wiring:
Cable length:
Cable
Length
TSX CDP 053
0.5 m
TSX CDP 103
1 m
TSX CDP 203
2 m
TSX CDP 303
3 m
TSX CDP 503
5 m
