Example of Connecting Sensors to the Auxiliary Inputs and Their Supply.
(Original Document)
About us
Illustration

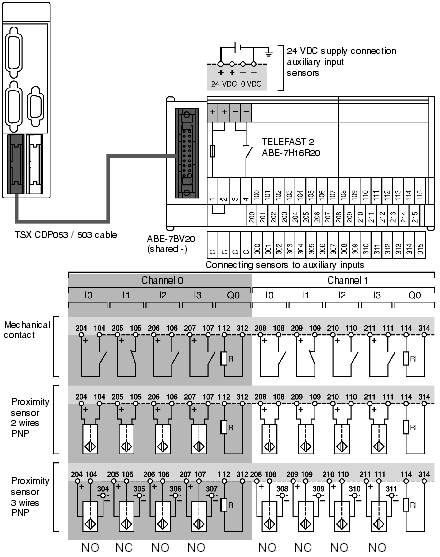

This connection is made using a TELEFAST 2 connection base: ABE-7H16R20:
NO: Normally Open.
NC: Normally Closed (Conductor).
