Connection Using the TELEFAST Pre-wiring System
(Original Document)
About us

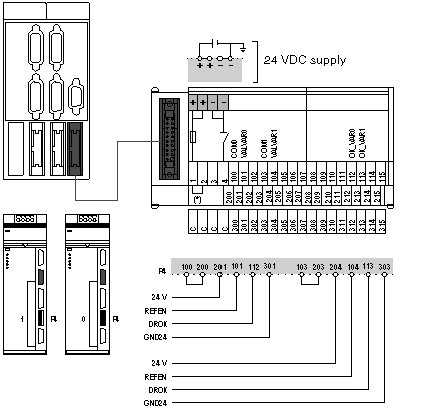

Diagram of the Principle
This diagram illustrates the principles for connection:
To connect directly, use
the TSX CDP 301 or 501 strip
.
(*) Strap between 1 and 2: terminals 200 to 215 are +24 VDC.
