Connection using strips allows a direct connection to actuators, pre-actuators or terminals. This strand comprises 20 gage 22 wires (0.34 mm2) with a HE10 connector at one end and free wires at the other end, each identified using a color code.

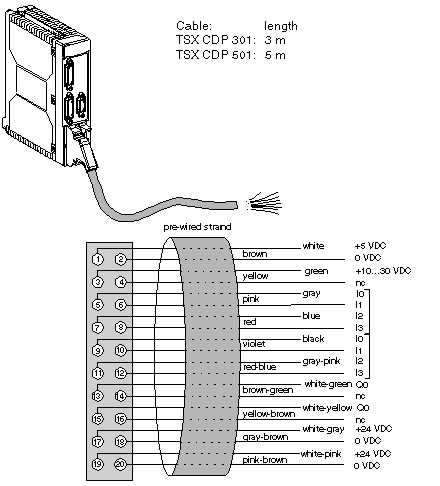

This diagram shows the relation between the color of the wires and the pin number of the HE10 connector:
