The TSX CAY modules integrate basic inputs/outputs, which ensure complete functioning of the movement command, as well as ensuring the encoder supply.

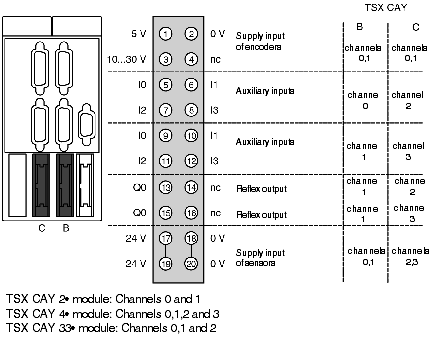

The connector is a high density HE10:
The auxiliary inputs/outputs are allocated the following functions:
-
I0 = cam reference point input,
-
I1 =emergency stop input (stop if there is no current in the input),
-
I2 = adjusting input,
-
I3 = adjustment input,
-
Q0 = reflex output (static output),
-
0 V = shared auxiliary inputs and reflex outputs.

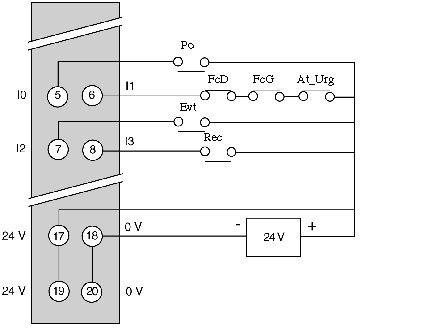

Principle for Connecting the I/O Associated with Channel 0
Illustration:
