Terminal Connectors
Original instructions
About us
Available Types
Power is supplied to the module through an 8-pole terminal connector. Two types of terminal connectors are available:
Screw-In Version
Screw-in terminals can be used with cable with a diameter of up to 12 AWG (2.5 mm2). They come in sets of three. The part number is 170 XTS 011 00.
Spring-Clip Version
Spring-clip terminals can be used with cable with a diameter of up to 14 AWG (1.5 mm2). They come in sets of three. The part number is 170 XTS 012 00.
Safety Requirement
This module is used in hazardous and harmless voltage ranges. For safety, code the terminal connectors and the power supply module to prevent inadvertent exchanges of terminal blocks.
Coding Set
To complete the coding described below, order the 170 XCP 200 00 coding set. This set contains coding keys and combs.
Coding Illustration

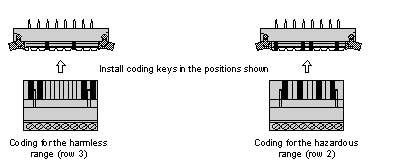

Install coding keys in the positions shown in the following illustration:
Mounting the Terminal Connectors
To mount a terminal connector, press it into the module’s pin connector.
Mounting the Terminal Connectors
DANGER
RISK OF ELECTRIC SHOCK
Only mount and remove terminal connectors when the module is not under power.
Failure to follow these instructions will result in death or serious injury.
To remove a terminal connector, press both extractors, as shown in the illustration below:
