Processor and Option Adapter on a Discrete VAC Base
Original instructions
About us
Overview
This section provides dimensions for using processor and option adapters with a discrete VAC base.
Notes
The minimum depth (75 mm) includes both the option adapter and the built-in extender ring on the I/O base.
The figure on the right shows an addition 30 mm length dimension for an optional three-row busbar.
Illustration

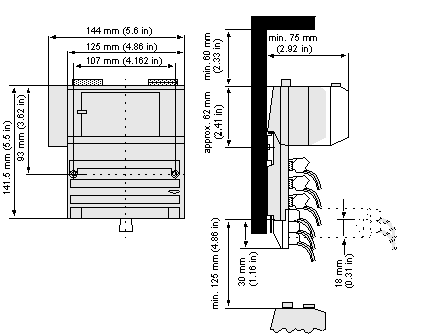

The following illustration shows dimensions for this assembly.
