Processor and Option Adapter on a Typical Base
Original instructions
About us
Overview
This section provides dimensions for a processor adapter and an option adapter mounted on a typical analog or VDC I/O base.
Notes
The option adapter adds to the width of this assembly (total 144 mm).
The figure on the right shows an addition 30 mm length dimension for an optional three-row busbar.
Illustration

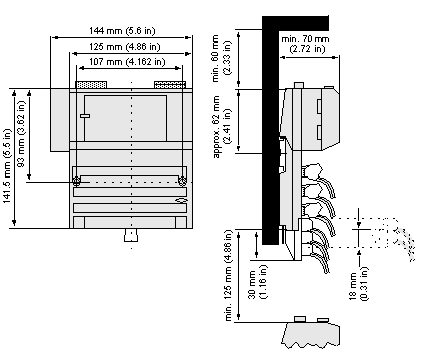

The following illustration provides dimensions for this assembly.
