Viewing the Momentum 170ENT11001 I/O Properties

About us
Overview
This topic describes the I/O properties for the Momentum 170ENT11001 using the Momentum I/O Properties Web page.

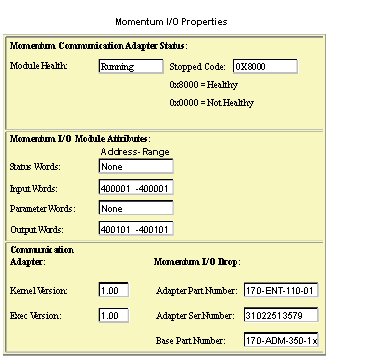

Page - Momentum I/O Properties
The page provides information only. Select one of the five links at the bottom of the screen to move to another page. This table describes the fields on the Momentum I/O Properties page.
Field
Description
Momentum communication adapter status
Provides information about the status (module health) and stopped code.
Momentum I/O module attributes
Provides I/O base information on the number of:
  • status words
  • input words
  • parameter words
  • output words
Communication adapter
Provides information about the Kernel version and Exec. version.
Momentum I/O drop
Provides the adapter’s part and serial number and the base’s part number.
Use this page to select properties.
