Controlling Web Page Access with Passwords

Overview

This topic describes the embedded Web page used to enable both Web site security (Web access password) and configuration security (configuration password) for the Momentum 170ENT11001.

Page - Security

Use this page to make changes.

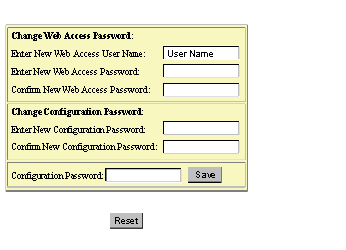

You may change both your Web site password and the configuration password. Select the Security link, and the Change Web Access & Configuration Passwords page appears.

NOTE: The maximum length for a password is 16 characters.

Configuring the Web access password:

Step	Action
1	Enter your Web access user name.
2	Enter your new password in the Enter New Web Access Password field.
3	Confirm your password.
4	Enter the configuration password. Default is (httpcfguser).
5	Click Save.
6	To confirm a successful change, the Web Access Password Change Confirmation page appears.

Configuring a configuration password:

Step	Action
1	Enter your new configuration password in the Enter New Configuration Password field.
2	Confirm your password.
3	Enter the configuration password. Default is (httpcfguser).
4	Click Save.
5	To confirm a successful change, the Configuration Password Change Confirmation page appears.

NOTE: The Schneider Electric default configuration password is httpcfguser (lower case).
