Reading Registers
The following procedure describes how to read registers from the Ethernet adapter using your NOET.
Step
Action
1
Establish a connection with the Ethernet adapter.
2

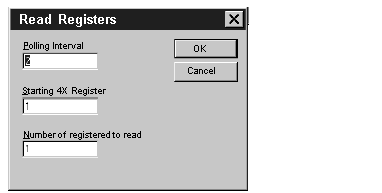

  • Click Messages → Read Register.
    - or -
  • Click the Read Register toolbar icon.
3
In the Polling Interval field, type the number of seconds between transactions.
4
In the Starting 4x Register field, type the register number of the first 4x register. When typing the 4x register number, omit the leading 40 or 400.
5
In the Number of registers to read field, type in the number of registers to read.
6
Click OK.
Result: The register values display in the window for this connection. Five values will be listed in each row, with the number of the first register at the beginning of the row.
