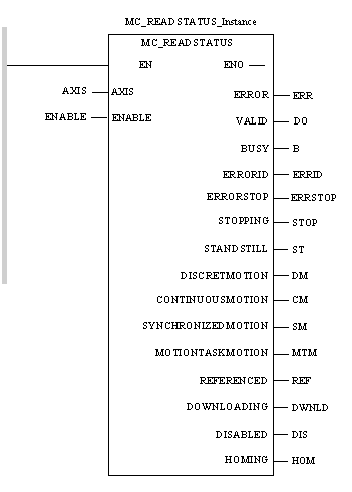

LD Axis

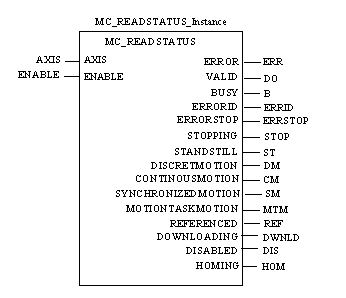

CAL MC_READSTATUS_Instance(AXIS:=AXIS, ENABLE:=ENABLE, ERROR=>ERR, VALID=>DO, BUSY=>B, ERRORID=>ERRID, ERRORSTOP=>ERRSTOP, STOPPING=>STOP, STANDSTILL=>ST, DISCRETMOTION=>DM, CONTINUOUSMOTION=>CM, SYNCHRONIZEDMOTION=>SM, MOTIONTASKMOTION=>MTM, REFERENCED=>REF, DOWNLOADING=>DWNLD, DISABLED=>DIS, HOMING=>HOM)
MC_READSTATUS_Instance(AXIS:=AXIS, ENABLE:=ENABLE, ERROR=>ERR, VALID=>DO, BUSY=>B, ERRORID=>ERRID, ERRORSTOP=>ERRSTOP, STOPPING=>STOP, STANDSTILL=>ST, DISCRETMOTION=>DM, CONTINUOUSMOTION=>CM, SYNCHRONIZEDMOTION=>SM, MOTIONTASKMOTION=>MTM, REFERENCED=>REF, DOWNLOADING=>DWNLD, DISABLED=>DIS, HOMING=>HOM);
|
Parameter
|
Type
|
Comment
|
|---|---|---|
|
ERROR
|
When ERROR is TRUE, an execution error is detected by the function block.
|
|
|
ERRORID
|
Axis is missing or faulty.
|
|
|
ERRORSTOP
|
When ERRORSTOP is TRUE, stop with an error.
|
|
|
STOPPING
|
When STOPPING is TRUE, MC_STOP is in progress.
|
|
|
STANDSTILL
|
When StandStill is TRUE, the servodrive is in StandStill status.
|
|
|
DSICRETMOTION
|
When DISCRETMOTION is TRUE, a move in absolute or relative mode is in progress, or Jog.
|
|
|
CONTINUOUSMOTION
|
When CONTINUOUSMOTION is TRUE, a move in speed mode is in progress, or torque.
|
|
|
SYNCHRONIZEDMOTION
|
A synchronization operation is in progress, via the gearing operating mode.
|
|
|
MOTIONTASKMOTION
|
An MotionTask operation is in progress via the LXM_STARTMTASK block.
|
|
|
REFERENCED
|
The servodrive is referenced (homing performed).
Note: This bit is not taken into account for ATV type servodrives.
|
|
|
DOWNLOADING
|
When DOWNLOADING is TRUE, downloading is in progress.
|
|
|
DISABLED
|
Axis is in disable status.
|
|
|
HOMING
|
When HOMING is TRUE:
|
