Modifying Module Parameters Using the Standard Connected Mode
Original instructions
About us
Parameter Modifications
Modifications made when the Online modification in RUN or STOP check box is selected have an immediate impact on the process.
NOTE: Use an M580 CPU version 2.00 (or later) to manage local I/O CCOTF features.
WARNING
UNINTENDED EQUIPMENT OPERATION
  • Check that modifying the module parameters does or does not have impact on the process or on the application execution.
  • For input modules, consider that the input values in the memory image may be forced.
  • Remove the terminal block or connector from the module before modifying the module parameters.
  • Account for overhead time linked with the CCOTF process for watchdog management. (See the previous Notice.)
Failure to follow these instructions can result in death, serious injury, or equipment damage.

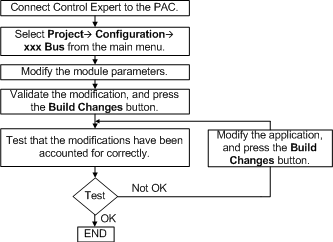

This describes the process of modifying module parameters using the standard connected mode:
