Configuring the PCMCIA Cards
Original instructions
Configuring with Control Expert
This is the procedure to allocate memory to the memory card:
Step
Action
1
If not opened, open the Local Bus configuration editor.
2
Go to the local bus in the Structural View of the Project Browser.
3
Open the local bus either by double-clicking on the Local Bus or by selecting the Local Bus and executing right-click Open.
Result: A graphical representation of the local bus appears.
4
Select either PC Card A (1 slot) or PC Card B (2 slot).

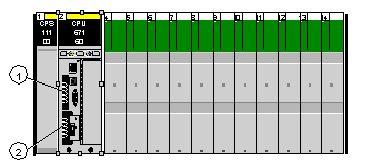

1
Memory configuration of the PCMCIA card 1
2
Memory configuration of the PCMCIA card 2
5
Double-click or right-click either PCMCIA card.

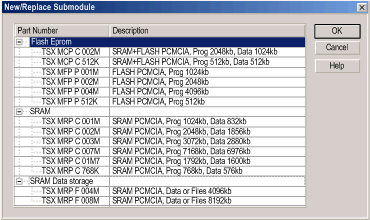

Results:The New/Replace Submodule dialog appears.
6
Add or replace the desired memory.
