Configuring the Modbus Plus Communication Type
|
|
|
Original instructions
|
|
Configuring the Modbus Plus Communication Type
|
|
|
Original instructions
|
|
Step
|
Action
|
|---|---|
|
1
|
If not opened, open the Local Bus configuration editor.
|
|
2
|
Go to the local bus in the Structural View of the Project Browser.
|
|
3
|
Open the Local Bus editor either by double-clicking on the Local Bus or by selecting the Local Bus and executing right-click Open.
Results: A graphical representation of the local bus appears.
|
|
4
|

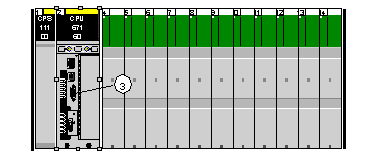

Point to the Modbus Plus port, No. 3.
 |
|
5
|
Double-click or right-click on the Modbus Plus port.

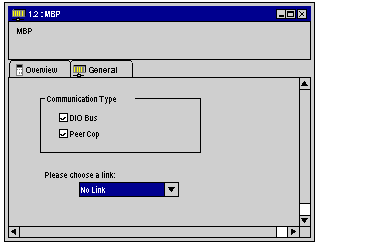

Results The Submodule dialog appears. The General tab is the default.
 |
|
6
|
Select one or both Communication Type:
|
