Using the Hot Standby Tab
|
|
|
Original instructions
|
|

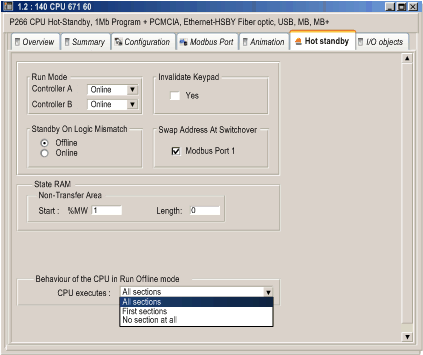

Using the Hot Standby Tab
|
|
|
Original instructions
|
|
Item
|
Option
|
Value
|
Description
|
|---|---|---|---|
|
Run Mode
|
Controller A
|
Offline/Online
|
Indicates which controller is Offline and Online at the next start up.
|
|
Controller B
|
Offline/Online
|
||
|
Invalidate Keypad
|
Disable
|
Yes is NOT selected
|
When selected, the keypad cannot be used to change the Hot Standby submenu.
|
|
Enable
|
Yes is selected
(Check mark displayed)
|
||
|
Standby On application mismatch
|
Offline
|
Default
Offline button selected
|
If mismatch is detected, Standby goes Offline
|
|
Online
|
Default
Online button not selected
|
If button is selected and mismatch is detected, Standby remains Standby
|
|
|
Swap Address At Switchover
|
Modbus Port 1
|
Default
All selected
|
When selected, enables Modbus switchover to occur.
|
|
State RAM: Non-Transfer Area
|
Start: %MW
|
1
|
Starting address of memory area not transferred.
|
|
Length
|
1
|
Specify the range of the length.
|
|
|
Behavior of the CPU in Run Offline mode
|
All sections of the MAST task
|
Default
|
Regarding the option selected, the CPU will or will not execute the program when CPU is in Run Offline mode.
|
|
First section of the MAST task
|
|||
|
No section of the MAST task
|
|||
|
1. Enter the appropriate values. All values depend on Hot Standby configuration.
|
|||
