The different optional elements constituting an Atrium card

Optional elements

The following 2 elements are optional:

A TSX PCI ACC1 shield. This accessory is to be used for integrating the Atrium processor within an X-Bus cable segment.
A 24 V power supply, TSX PSI 2010. This card is connected to the Atrium processor card and ensures the power supply to the processor when the PC is switched off. It also enables the Atrium processor to be fitted within an X-Bus cable segment.

TSX PCI ACC1 shield

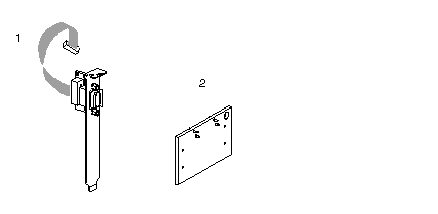

This diagram presents the different elements that constitute the TSX PCI ACC1:

Table of elements and descriptions

The following table indicates the names and descriptions of the different elements constituting a TSX PCI ACC1:

Number	Element	Description
1	Shield	Shield fitted with a SUB-D 9 pin connector for connecting a TSX CBY..OK X-Bus extension cable and a cable for connection to the processor. This accessory is to be used for integrating the processor within an X-Bus cable segment.
2	Daughterboard	Two types of daughterboards: one which provides the interface between the shield below and the processor card, this accessory is to be used with the shield below. It is fitted instead of and in the place of the line termination A/ integrated in the base of the processor. one which allows connection to an IBY module

NOTE: In addition, the elements specified below are supplied with the Atrium card:

TSX PSI 2010 24V power supply

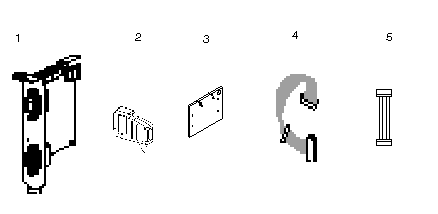

This diagram presents the different elements that constitute the TSX PSI 2010:

Table of elements and descriptions

The following table indicates the names and descriptions of the different elements constituting a TSX PSI 2010:

Number	Element	Description
1	24V power supply card	A power supply card equipped with: a SUB-D 9 pin connector for connecting a TSX CBY ••0K X-Bus extension cable and a male connector for the external 24 V power supply.
2	Female connector	A female connector for connection to the 24 V external power supply.
3	Line termination	A daughterboard that ensures the interface between the power supply card and the Atrium processor card. It is fitted instead of and in the place of the line termination A/ integrated in the base of the processor.
4	X-Bus cable	An X-Bus cable for connecting the daughterboard to the X-Bus connector of the power supply card.
5	Power supply cable	A power supply cable for connecting the power supply card to the power supply of the Atrium processor card.
