TSX CBY..0K X-Bus extension cable
(Original Document)
About us
At a Glance
These cables of predetermined length are used to chain TSX RKY..EX extendable racks and to transport the different X-Bus signals.
When an Atrium processor is used, they can also be used to connect the PC’s built-in processor and the first rack in the station.
They are equipped at each end with male 9-pin SUB D connectors, which connect to the female 9-pin SUB D connector on the extendable rack or the Atrium processor.
Station with TSX processor which can be integrated in the rack

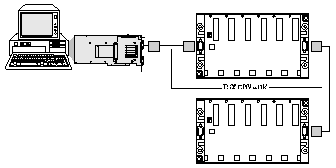

Station with Atrium processor which can be integrated in a PC
Important:
The cumulative length of all the cables used in a PLC station is limited to 100 meters.
CAUTION
EQUIPMENT DAMAGE
Switch off all station’s elements (racks, PC, etc...) before insertion or extraction of a TSX CBY0K cable.
Failure to follow these instructions can result in injury or equipment damage.
Different cable types available
To suit different users, several cable lengths are available.
Summary table of different cable types
Product reference
Lengths
TSX CBY 010K (II ≥ 02)
1 meter
TSX CBY 030K (II ≥ 02)
3 meters
TSX CBY 050K (II ≥ 02)
5 meters
TSX CBY 120K (II ≥ 02)
12 meters
TSX CBY 180K (II ≥ 02)
18 meters
TSX CBY 280K (II ≥ 02)
28 meters
TSX CBY 380K (II ≥ 02)
38 meters
TSX CBY 500K (II ≥ 02)
50 meters
TSX CBY 720K (II ≥ 02)
72 meters
TSX CBY 1000K (II ≥ 02)
100 meters
