The different standard elements constituting an Atrium card
(Original Document)
About us
Illustration

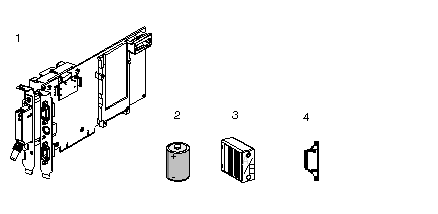

This diagram shows you the different standard elements constituting an Atrium processor card.
Table of elements and descriptions
The following table indicates the names and descriptions of the different elements constituting a TSX PCI 57 processor card:
Number
Element
Description
1
Atrium processor card
It is associated with a mechanical subassembly for accepting a type 3 communication PCMCIA card.
2
Battery
It ensures that the RAM memory of the processor is saved. It is to be installed in the slot provided for this purpose on the processor card.
3
Line termination
TSX TLYEX /B type line termination.
4
Removable cover
A removable cover for the type 3 communication PCMCIA card, specific to the Atrium processor. The mechanical fitting of a communication card on the Atrium processor requires the use of this cover (see mounting and maintenance instructions delivered with each communication card).
