TBX SUP 10 dimensions/mounting/connections
(Original Document)
About us

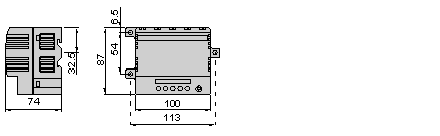

Dimensions/mounting
Illustration:
The TSX SUP 10 power supply module must be mounted vertically to optimize the natural convection of air inside the module.
It may be mounted on Telequick AM1-PA grid, plate or rail

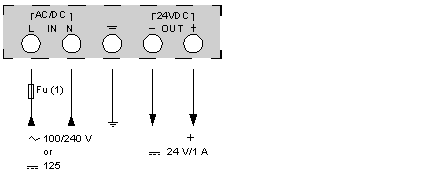

Connections
Illustration:
(1) External phase protection fuse: 1A time-delayed 250 V if power supply alone.
NOTE: Primary: if the module is powered with 100/240V alternating current, then phase and neutral must be wired correctly. If, however, the module power supply is 125 V DC, polarities need not be respected.
Secondary: the 0 V potential - terminal must be connected to ground at the power supply module output.
DANGER
ELECTRIC SHOCK
Connect the module's grounding terminal to the protective ground, using a green/yellow wire.
Failure to follow these instructions will result in death or serious injury.
