TSX SUP 1101 power supply modules may be mounted on a panel, an AM1-PA grid or a DIN rail.
Plan of screw-holes (dimensions in mm):
(1) The diameter of the fixing holes must be suitable for M6 screws.

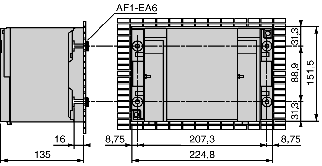

Mounting on an AM1-PA Telequick mounting grid
Fix the supply module using M6x25 screws + washers and AF1-EA6 clips nuts (dimensions in millimeters):

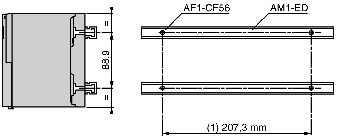

Mounting on 35 mm wide DIN mounting rail
Fix the supply module with four M6x25 screws + washers and AF1-CF56 1/4 turn sliding nuts (dimensions in millimeters):
