TSX PCI 57 Atrium Processor

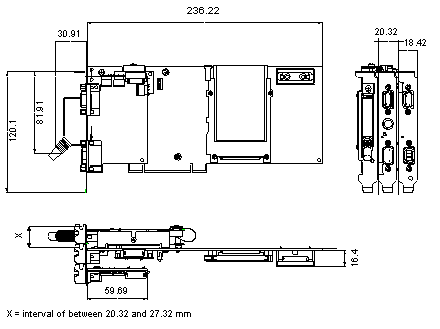

The following diagrams show the dimensions, in millimeters, of Atrium processor cards.
NOTE: A TSX PCI 57 processor uses two slots on the PCI bus of the PC. These slots must be adjacent and set at an interval of between 20.32mm and 27.32 mm apart.
Atrium Processor with Optional 24V Power Supply

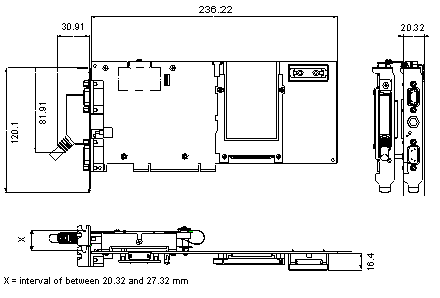

The following diagrams show the dimensions, in millimeters, of Atrium processor cards.
NOTE: A TSX PCI 57 processor with an optional 24V power supply uses three slots on the PCI bus of the PC. These slots must be adjacent and set at an interval of between 20.32mm and 27.32 mm apart.
NOTE: If the processor is powered by an optional power supply card, then the processor is not switched off when the PC is switched off, but when the optional power supply card is switched off.
