Open the Page

The BMEP584040, BMEP585040, and BMEP586040 standalone CPUs include a Rack Viewer web page. Access this page from the Diagnostics tab ( System > Rack Viewer ).

NOTE: You may have to wait a few seconds for the Rack Viewer to replicate your configuration.

Example

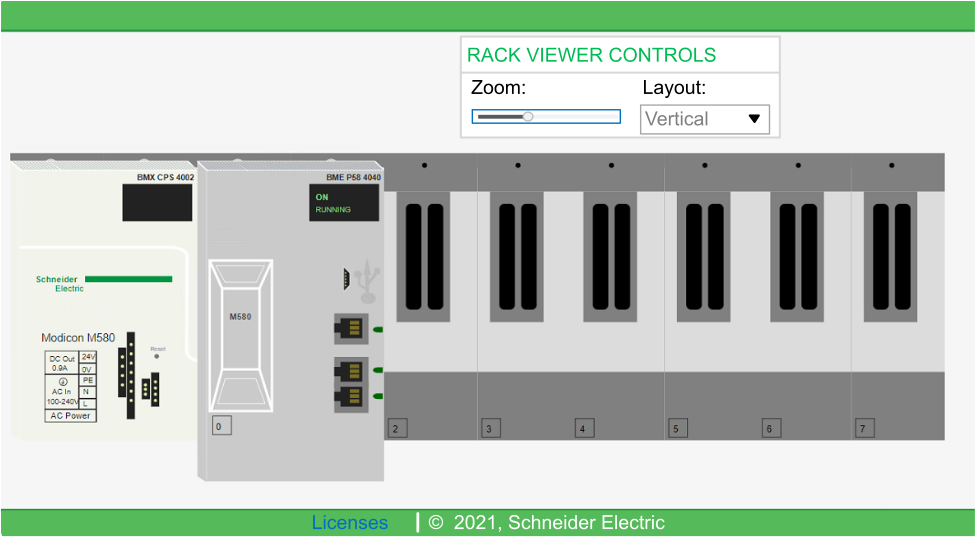

This example of a Rack Viewer page shows a standalone CPU on its rack with a power supply:

Rack Viewer page (Standalone CPU):

See also the example of the Hot Standby Rack Viewer page.

Information from This Page

The rack that appears in the top left of the Rack Viewer represents the local rack that contains the CPU.

Select navigation and view options in the Rack Viewer page:

Control

Selection

Description

Layout (menu)

Horizontal

Each RIO drop is shown in a top-to-bottom order beneath the primary bus. The lowest number RIO drop is at the top.

Vertical

Each RIO drop is shown in a left-to-right order beneath the primary bus. The lowest number RIO drop is at the left.

Zoom (menu)

Zooming

Zoom in by sliding the control right. Zoom out by sliding the control left.

Double -click on any CPU in the Rack Viewer to see this information:

Refer to the Hot Standby Rack Viewer page for a description of the fields shown above.

You can read this CPU data:

  • CPU reference name

  • bus, drop, rack, and slot location

  • CPU state (RUN, ERR, and I/O)

  • processor and network card information

  • application name (on the CPU)
