Open the Page

Access the Status Summary page from the Diagnostics tab (Module > Status Summary):

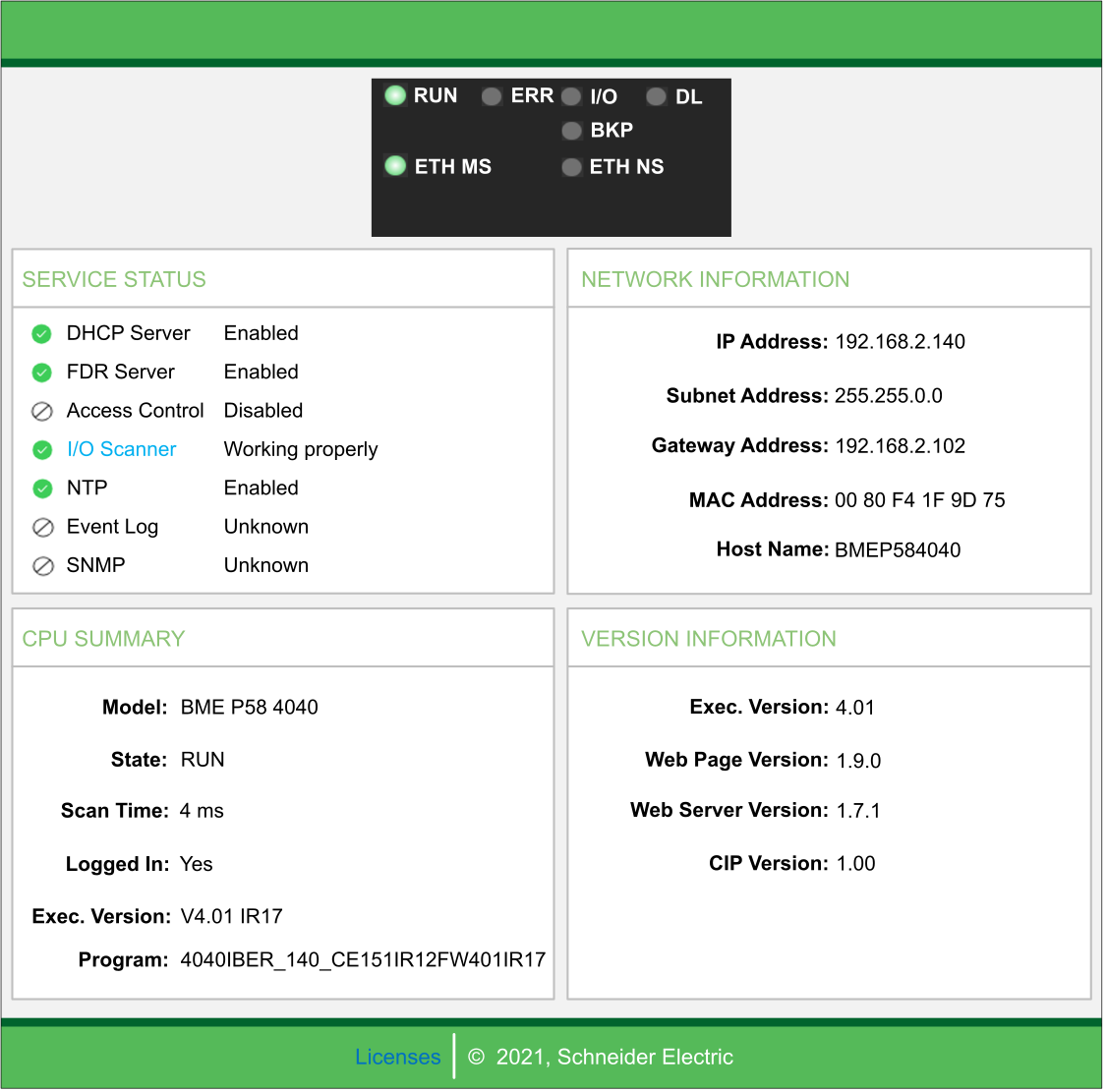

Status Summary (Standalone CPU) page:
NOTE:

  • This page is updated every 5 seconds.

  • For Hot Standby CPUs refer to the Status Summary page for Hot Standby CPUs.

Diagnostic Information

The objects on this page provide status information:

Parameters

Description

LEDs

The black field contains LED indicators (RUN, ERR, etc.).

NOTE: The diagnostics information is explained in the description of LED activity and indications.

Service Status

green

The available service is operational and running.

red

An error is detected in an available service.

black

The available service is not present or not configured.

Version Information

This field describes the software versions that are running on the CPU.

CPU Summary

This field describes the CPU hardware and the applications that are running on the CPU.

Network Information

This field contains network and hardware address information and connectivity that corresponds to the CPU.
