Overview

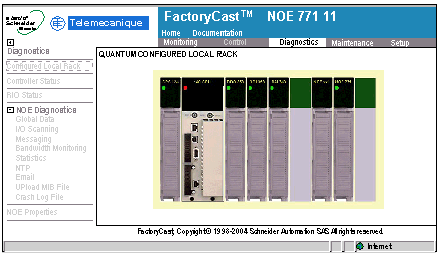

The Configured Local Rack page shows the current configuration:
Configured Local Rack Page Overview
The following table details the links on the Configured Local Rack page. To view the pages related to each of these topics, click the topic.
Link
Display
Global Data
general diagnostics of the global data and a table of all published/subscribed variables in a distribution group
I/O Scanning
general diagnostics of the I/O scanning utility and a summary of the status of all modules
Messaging
current information on open TCP connections on Port502
Bandwidth Monitoring
load distribution of the Embedded Server module between the global data utilities, I/O scanning, messaging, and other utilities
Statistics
Ethernet module statistics with the reset counters link
NTP
time synchronization service parameters
Email
Email notification service parameters
Upload MIB file
upload the private MIB source file
Crash Log file
crash message (after crash) and status message (normal operations)
