Configuring the IP Address of the Ethernet Controller
Original instructions
About us
General Description
The IP configuration tab enables you to configure the IP address settings. The settings are activated after the connection to the hardware and the configuration is downloaded to the Modicon Quantum with Control Expert Ethernet controller, 140 CPU 651 x0.

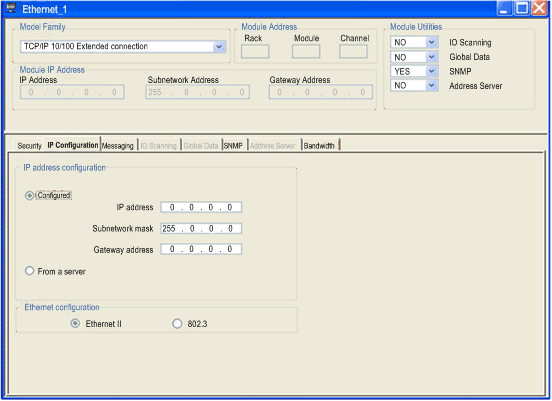

The diagram shows the IP configuration for the Modicon Quantum with Control Expert Ethernet controller, 140 CPU 651 x0.
Description of the selection properties
Selection
Description
Configured
Activate the IP address, Subnet mask and Gateway address. The data is activated after the configuration is downloaded to the controller.
Client / Server
The Modicon Quantum with Control Expert Ethernet controller receives its IP address parameter through a BOOTP server on startup.
