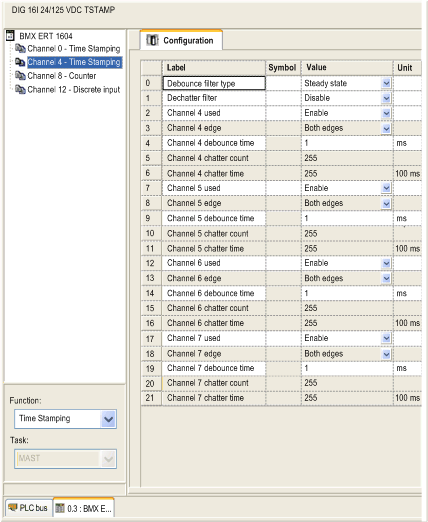

Configuration for Group 1, 2, 3 Time Stamping
|
|
|
Original instructions
|
|
Configuration for Group 1, 2, 3 Time Stamping
|
|
|
Original instructions
|
|
Label
|
Input Type
|
Value
|
|
|---|---|---|---|
|
Function for group x (x = 4, 8, 12)
|
Option
|
Value 0: Discrete input
Value 1: Counter
Value 2: Time stamping (default)
|
|
|
Group x Parameters
(x = 4, 8, 12)
|
Debounce filter type
|
Option
|
Value 0: Steady state, a signal change is only registered if the polarity change remains stable for longer than the filter time (each new change resets the filter time) (default)
Value 1: Integrating, a signal change is only registered if the time integral of the input signal reaches the programmed filter time taking any polarity change into account
|
|
Dechatter filter
|
Option
|
Value 0: Disable, chatter time and chatter count are deactivated (default)
Value 1: Enable, chatter filter for event and counter input
|
|
|
Channel x Parameters
(x = 4...15)
|
Channel x used
|
Option
|
Value 0: Enable (default)
Value 1: Disable, impedes processing of input data for the input. If disabled, remains always 0.
|
|
Channel x edge
|
Option
|
Value 0: Both edges (default)
Value 1: Rising edge
Value 2: Falling edge
|
|
|
Channel x debounce time
|
Input
|
Debounce time 0...255 ms (default = 1)
Value 0: Without internal SW delay
Units: ms
|
|
|
Channel x chatter count
|
Input
|
Chatter number 1...255 for event/counter input (default = 1)
|
|
|
Channel x chatter time
|
Input
|
Chatter filter time duration 1...255 x 100 ms (default = 1)
Units: 100 ms
|
|
