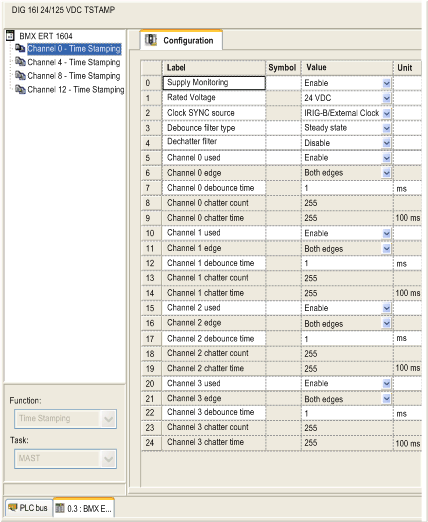

Configuration for Group 0 Time Stamping
|
|
|
Original instructions
|
|
Configuration for Group 0 Time Stamping
|
|
|
Original instructions
|
|
Label
|
Input Type
|
Value
|
|
|---|---|---|---|
|
Function for group 0
|
Fixed
|
Value 2: Time stamping
|
|
|
Module Parameters
|
Supply monitoring
|
Option
|
Value 0: Disable, supply monitoring
Value 1: Enable, supply monitoring (default)
|
|
Rated voltage
|
Option
|
Value 0: 24 Vdc (default)
Value 1: 48/60 Vdc
Value 2: 110/125 Vdc
|
|
|

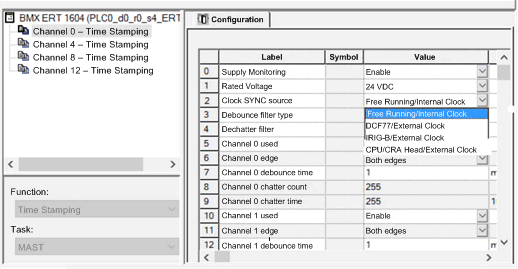

Clock SYNC source
|
Option
|
Value 1: Free Running/Internal Clock
Value 2: DCF77/External Clock
Value 3: IRIG-B/External Clock (default)
Value 4: CPU/CRA Head External Clock (only for BMXERT1604.2 Hardware Catalog device)
|
|
|
Group Parameters
|
Debounce filter type
|
Option
|
Value 0: Steady state, a signal change is only registered if the polarity change remains stable longer than the filter time (each new change resets the filter time) (default)
Value 1: Integrating, a signal change is only registered if the time integral of the input signal reaches the programmed filter time taking any polarity change into account
|
|
Dechatter filter
|
Option
|
Value 0: Disable, chatter time and chatter count are deactivated (default)
Value 1: Enable, chatter filter for event and counter input
|
|
|
Channel x Parameters
(x = 0...3)
|
Channel x used
|
Option
|
Value 0: Enable (default)
Value 1: Disable, impedes processing of input data for the input. If disabled, it remains always 0
|
|
Channel x edge
|
Option
|
Value 0: Both edges (default)
Value 1: Rising edge
Value 2: Falling edge
|
|
|
Channel x debounce time
|
Input
|
Debounce time 0...255 ms (default = 1)
0 = Without internal SW delay
Unit: ms
|
|
|
Channel x chatter count
|
Input
|
Chatter number 1...255 for event/counter input (default = 1)
|
|
|
Channel x chatter time
|
Input
|
Chatter time duration 1...255 x 100 ms (default = 1)
Unit: 100 ms
|
|
