Addressing

Flat Addressing

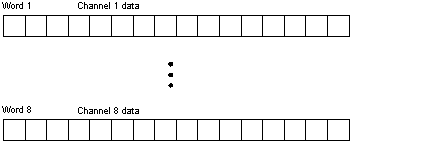

This module requires nine contiguous, 16-bit input words (%IW)—eight for input data and one for channel status. The data words formats are as follows.

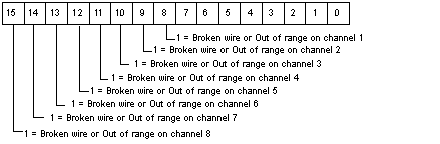

The following shows the word 9 register.

NOTE: The word 9 register is the status of input channels. This status works for all configurations beginning PV04 and for any version (PV) with configuration 4... 20 mA. But the status doesn’t work for PV<04 with configurations 0...20 mA or 0...25 mA.

Topological Addressing

Topological addresses for the 140 AII 030 10 Input Module:

Point	I/O Object	Comment
Input 1	%IW[\b.e\]r.m.1	Value
Input 1	%I[\b.e\]r.m.1.1	Broken wire or Out of range
• • •
Input 8	%IW[\b.e\]r.m.8	Value
Input 8	%I[\b.e\]r.m.8.1	Broken wire or Out of range
Status Word	%IW[\b.e\]r.m.9	Status of input channels

Used abbreviations: b = bus, e = equipment (drop), r = rack, m = module slot.

IODDT

The 140 AII 030 10 Input Module uses the T_ANA_IN_VE IODDT:

IODDT Name	Object		Data Type		Name
T_ANA_IN_VE	%CH[\b.e\]r.m.c		ANA_IN_VWE		userdefined
		%IWr.m.c.0		Int		.VALUE
		%Ir.m.c.1		Bool		.ERROR

Used abbreviations: r = rack, m = module slot, c = channel, b = bus, e = equipment (drop).

Bus and Drop default to 1 if not specified and can be left off.

NOTE: In Quantum IODDTs for analog modules and expert modules the data type Bool is used for %I and %Q.

I/O Map Status Byte

The I/O map status byte is used by the 140 AII 030 10 Input Module as follows.
