Parameter Configuration
|
|
|
Original instructions
|
|

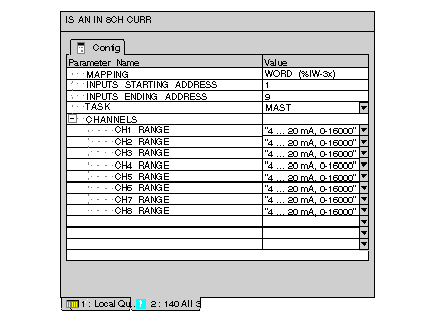

Parameter Configuration
|
|
|
Original instructions
|
|
Name
|
Default Value
|
Options
|
Description
|
|---|---|---|---|
|
Mapping
|
WORD (%IW-3X)
|
-
|
|
|
Inputs Starting Address
|
1
|
-
|
|
|
Inputs Ending Address
|
9
|
-
|
|
|
Task
(Grayed if module in other than local)
|
MAST
|
FAST
AUX0
AUX1
AUX2
AUX3
|
fixed to MAST if module in other than local
|
|
Channels
|
|||
|
CH1 Range
|
"4 ... 20 mA, 0-16000"
|
"0... 25 mA, 0-25000"
"0 ... 20 mA, 0-20000"
"4 ... 20 mA, 0-4095"
|
|
|
CH2 Range-CH8 Range
|
see CH1 Range
|
||
