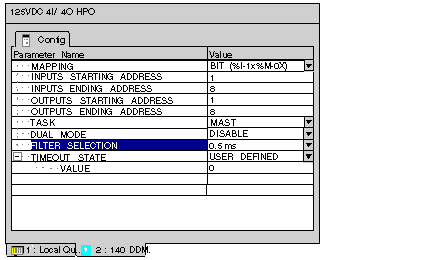

140 DDM 690 00 Parameter Configuration
|
|
|
Original instructions
|
|
140 DDM 690 00 Parameter Configuration
|
|
|
Original instructions
|
|
Name
|
Default Value
|
Options
|
Description
|
|---|---|---|---|
|
Mapping
|
BIT (%I-1x%M-0x)
|
WORD (%IW-3x%MW-4X)
|
|
|
Inputs Starting Address
|
1
|
1
|
|
|
Inputs Ending Address
|
8
|
1
|
|
|
Outputs Starting Address
|
1
|
1
|
|
|
Outputs Ending Address
|
8
|
1
|
|
|
Task
(Grayed if module in other than local)
|
MAST
|
FAST
AUX0
AUX1
AUX2
AUX3
|
fixed to MAST if module in other than local
|
|
Dual Mode
|
DISABLE
|
ENABLE
|
|
|
Filter Selection
|
0.5 ms
|
1.5 ms
|
|
|
Timeout State
|
USER DEFINED
|
HOLD LAST VALUE
|
|
|
Value
|
0
|
0-15
|
only enabled if Timeout State=USER DEFINED
|
