Specifications
|
|
|
Original instructions
|
|
Specifications
|
|
|
Original instructions
|
|
Module Type
|
4 IN (4 groups x 1 point)
4 OUT isolated
|
|
External Power
|
Not required for this module
|
|
Power Dissipation
|
0.4 W x (1.0) x number of input points ON + (0.75) x total module outputs Currents
|
|
Bus Current required (Module)
|
350 mA
|
|
I/O map
|
1 input word
1 output word
|
|
Fault Detection
|
Input: None
Over Current - each point
|
|
ON level voltage
|
+88 ... +156 VDC including ripple
|
|
ON level current
|
2.0 mA (min.)
|
|
OFF leve voltage
|
0 ... +36 VDC
|
|
OFF level current
|
1.2 mA (max.)
|
|
Internal Resistance
|
24 kohms (nominal)
|
|
Absolute Voltage (max.)
|
Continuous: 156.2 VDC including ripple
|
|
Default Filter
|
0.5 ms
|
|
Non-Default Filter
|
1.5 ms
|
|
Operating Voltage (max.)
|
19.2 ... 156.2 VDC including ripple
|
|
ON State Drop / Point
|
0.75 VDC @ 4 A
|
|
Each Point
|
4 A continuous
|
|
Per Module
|

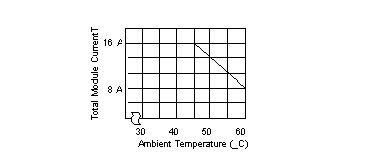

16 A continuous (see the derating curve)
|
|
OFF State Leakage / Point
|
1.2 mA @ 150 VDC
|
|
Surge Current (max.)
|
Each Point: 30 A @ 500 ms duration
|
|
Output Response (OFF-ON, ON-OFF)
|
0.2 ms (max.) (resistive load output
|
|
Load Inductance (max.)
|
For switching intervals ≥ 15 seconds
per ANSI/IEEE C37.90- 1978/1989):
 For repetitive switching:
 where: L = Load Inductance (Henry). I = Load Current (A). F = Switching Frequency (Hz)
|
|
Load Capacitance (max.)
|
0.1 microF @ 150 VDC
0.6 microF @ 24 VDC
|
|
Input Group to Output
|
1780 VAC rms for 1 minute
|
|
Output to Output
|
2500 VAC rms for 1 minute
|
|
Input Protection
|
Resistor limited
|
|
Output Protection
|
Transient Voltage Suppresion (internal)
|
|
Input
|
Internal - None
External - User installed per local and national electrical codes
|
|
Output
|
Each output is protected by an electronic shutdown:
For current output surges between 4 A and 30 A, the input point will shutdown after 0.5 s.
For current surges greater than 30 A, the output will shutdown immediately.
|
