Parameter Configuration
|
|
|
Original instructions
|
|

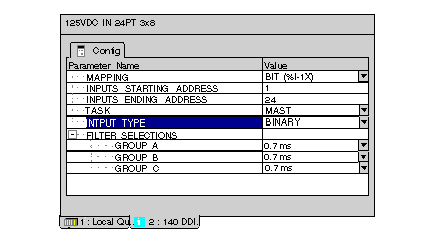

Parameter Configuration
|
|
|
Original instructions
|
|
Name
|
Default Value
|
Options
|
Description
|
|---|---|---|---|
|
Mapping
|
BIT (%I-1x)
|
WORD (%IW-3X)
|
|
|
Intputs Starting Address
|
1
|
1
|
|
|
Intputs Ending Address
|
24
|
2
|
|
|
Task
(Grayed if module in other than local)
|
MAST
|
FAST
AUX0
AUX1
AUX2
AUX3
|
fixed to MAST if module in other than local
|
|
FILTER_SELECTION
|
|||
|
Input Type
|
BINARY
|
BCD
|
|
|
Group A
|
0.7 ms
|
1.5 ms
|
|
|
Group B, Group C
|
see Group A
|
||
