I/O Configuration for Discrete Input Modules
Original instructions
Overview
This section provides information on configuration of 8-, 16-, 24-, 32-, and 96-point input modules.
8-Point Input Modules
The 8-point input modules are:
Flat Addressing
The input modules listed above can be configured as either 8 contiguous %I references or as one %IW word. For a description of how to access the input points, please refer to Discrete I/O Bit Numbering.
Topological Addressing
The following tables show the topological addresses for the 8-Point Input Modules.
Topological addresses in Bit Mapping format:
Point
I/O Object
Comment
Input 1
%I[\b.e\]r.m.1
Value
Input 2
%I[\b.e\]r.m.2
Value
• • •
Input 7
%I[\b.e\]r.m.7
Value
Input 8
%I[\b.e\]r.m.8
Value
Topological addresses in Word Mapping format:
Point
I/O Object
Comment
Inputword 1
%IW[\b.e\]r.m.1.1
Value
Used abbreviations: b = bus, e = equipment (drop), r = rack, m = module slot.
I/O Map Status Byte
There is no I/O map status byte associated with these modules.
16-Point Input Modules
The 16-point input modules are:
Flat Addressing
The input modules listed above can be configured as either 16 contiguous %I references or as one %IW word. For a description of how to access the input points, please refer to Discrete I/O Bit Numbering.
Topological Addressing
The following tables show the topological addresses for the 16-Point Input Modules.
Topological addresses in Bit Mapping format:
Point
I/O Object
Comment
Input 1
%I[\b.e\]r.m.1
Value
Input 2
%I[\b.e\]r.m.2
Value
• • •
Input 15
%I[\b.e\]r.m.15
Value
Input 16
%I[\b.e\]r.m.16
Value
Topological addresses in Word Mapping format:
Point
I/O Object
Comment
Inputword 1
%IW[\b.e\]r.m.1.1
Value
Used abbreviations: b = bus, e = equipment (drop), r = rack, m = module slot.
I/O Map Status Byte
There is no I/O map status byte associated with these modules.
24-Point Input Module
There is only one 24-point input module:
Flat Addressing

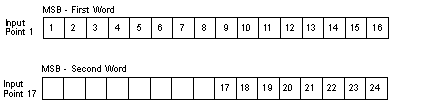

The input module listed above can be configured as either 24 contiguous discrete input %I reference, or as 2 contiguous %IW input words in the following format. For a description of how to access the input points, please refer to Discrete I/O Bit Numbering.
Topological Addressing
The following tables show the topological addresses for the 24-Point Input Modules.
Topological addresses in Bit Mapping format:
Point
I/O Object
Comment
Input 1
%I[\b.e\]r.m.1
Value
Input 2
%I[\b.e\]r.m.2
Value
• • •
Input 23
%I[\b.e\]r.m.23
Value
Input 24
%I[\b.e\]r.m.24
Value
Topological addresses in Word Mapping format:
Point
I/O Object
Comment
Inputword 1
%IW[\b.e\]r.m.1.1
Value
Inputword 2
%IW[\b.e\]r.m.1.2
Value
Used abbreviations: b = bus, e = equipment (drop), r = rack, m = module slot.
I/O Map Status Byte
There is no input I/O map status byte associated with this module.
32-Point Input Modules
The 32-point input modules are as follows:
For addressing information of the 140 DSI 353 00, please refer to Addressing.
Flat Addressing

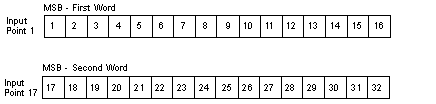

The input modules listed above can be configured as either 32 contiguous discrete input %I references or as two contiguous %IW input words in the following format. For a description of how to access the input points, please refer to Discrete I/O Bit Numbering.
Topological Addressing
The following tables show the topological addresses for the 32-Point Input Modules.
Topological addresses in Bit Mapping format:
Point
I/O Object
Comment
Input 1
%I[\b.e\]r.m.1
Value
Input 2
%I[\b.e\]r.m.2
Value
• • •
Input 31
%I[\b.e\]r.m.31
Value
Input 32
%I[\b.e\]r.m.32
Value
Topological addresses in Word Mapping format:
Point
I/O Object
Comment
Inputword 1
%IW[\b.e\]r.m.1.1
Value
Inputword 2
%IW[\b.e\]r.m.1.2
Value
Used abbreviations: b = bus, e = equipment (drop), r = rack, m = module slot.
I/O Map Status Byte
There is no I/O map status byte associated with these modules.
96-Point Input modules
The following is the only 96 point input module:
Flat Addressing

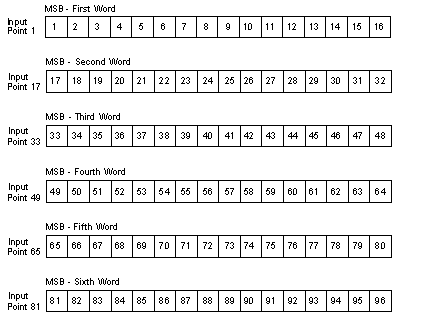

The following information pertains to the 140DDI36400 Input module. For a description of how to access the input points, please refer to Discrete I/O Bit Numbering.
Topological Addressing
The following tables show the topological addresses for the 96-Point Input Modules.
Topological addresses in Bit Mapping format:
Point
I/O Object
Comment
Input 1
%I[\b.e\]r.m.1
Value
Input 2
%I[\b.e\]r.m.2
Value
• • •
Input 95
%I[\b.e\]r.m.95
Value
Input 96
%I[\b.e\]r.m.96
Value
Topological addresses in Word Mapping format:
Point
I/O Object
Comment
Inputword 1
%IW[\b.e\]r.m.1.1
Value
Inputword 2
%IW[\b.e\]r.m.1.2
Value
Inputword 3
%IW[\b.e\]r.m.1.3
Value
Inputword 4
%IW[\b.e\]r.m.1.4
Value
Inputword 5
%IW[\b.e\]r.m.1.5
Value
Inputword 6
%IW[\b.e\]r.m.1.6
Value
Used abbreviations: b = bus, e = equipment (drop), r = rack, m = module slot.
I/O Map Status Byte
There is no I/O map status byte associated with this module.
