Parameter Configuration
|
|
|
Original instructions
|
|

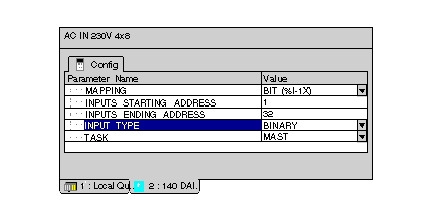

Parameter Configuration
|
|
|
Original instructions
|
|
Name
|
Default Value
|
Options
|
Description
|
|---|---|---|---|
|
Mapping
|
BIT (%I-1x)
|
WORD (%IW-3X)
|
|
|
Inputs Starting Address
|
1
|
1
|
|
|
Inputs Ending Address
|
32
|
2
|
|
|
Input Type
|
BINARY
|
BCD
|
|
|
Task
(Grayed if module in other than local)
|
MAST
|
FAST
AUX0
AUX1
AUX2
AUX3
|
fixed to MAST if module in other than local
|
